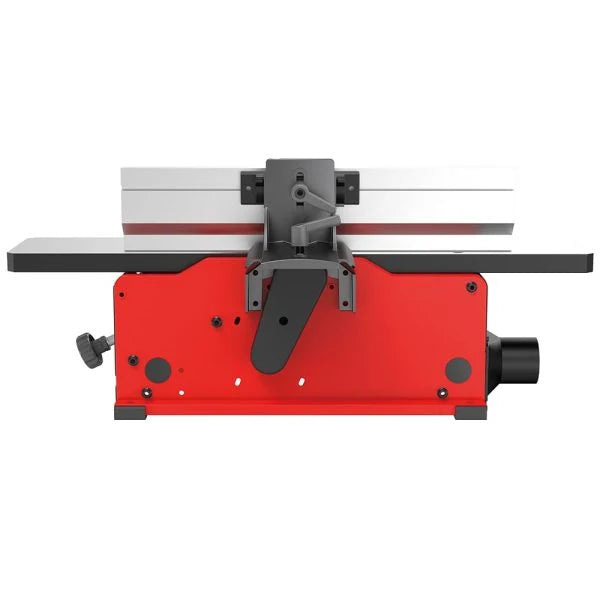

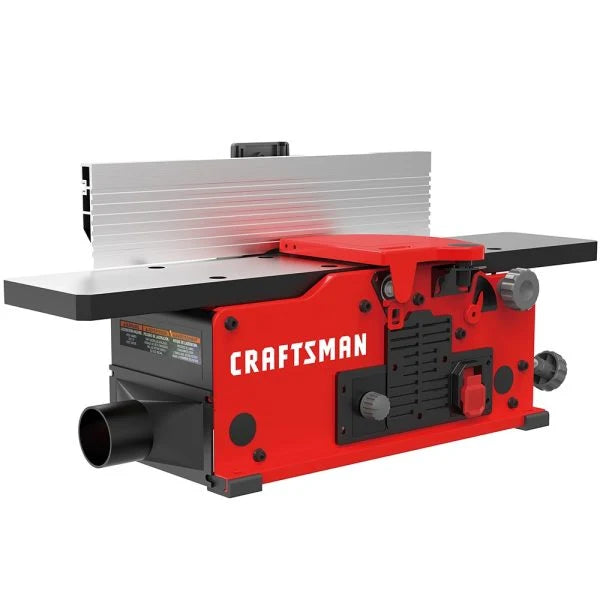

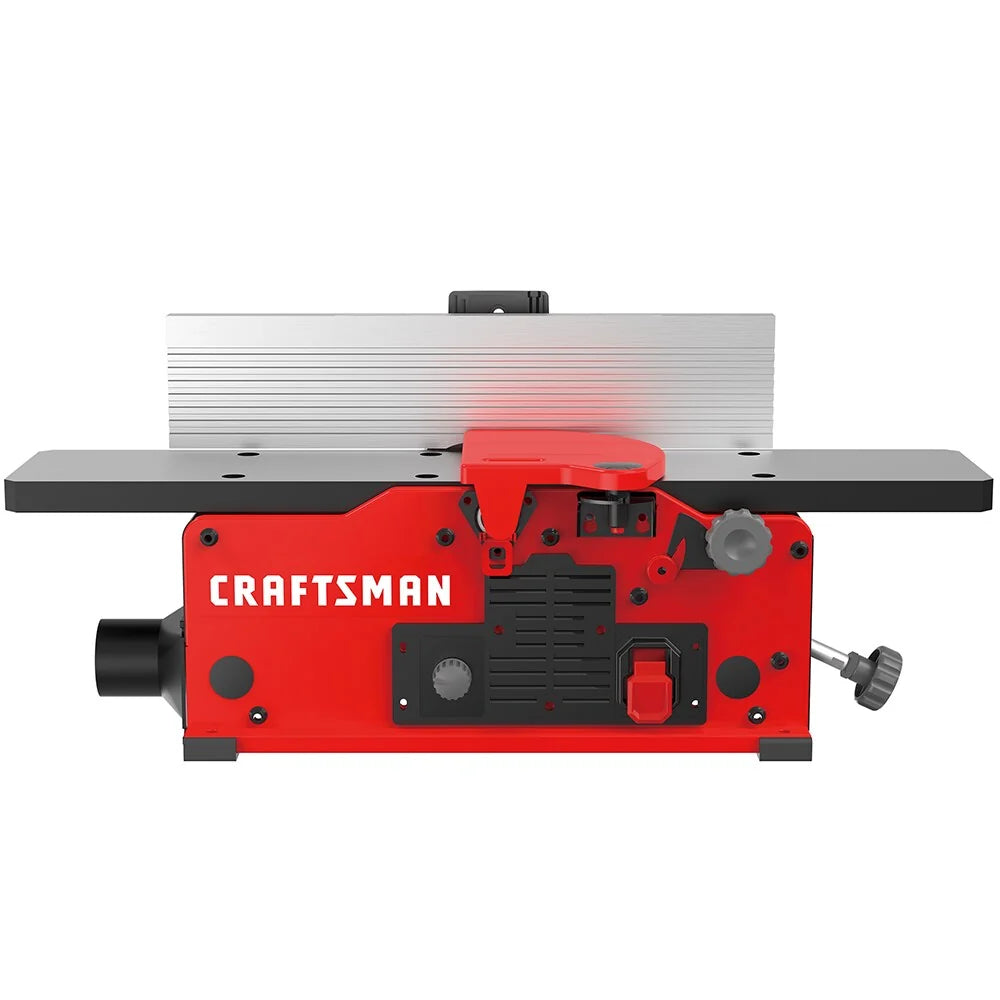

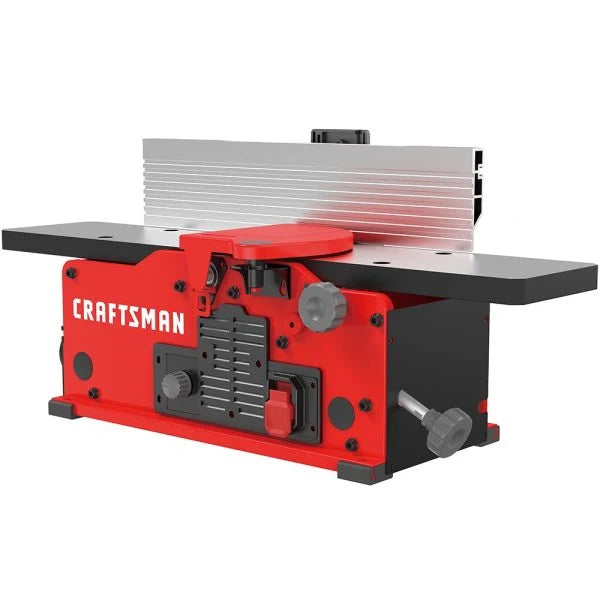

10 Amp Bench Jointer - Compact Woodworking Jointer
10 Amp Bench Jointer - Compact Woodworking Jointer
Couldn't load pickup availability
About This Item
Powerful 10-Amp Motor: This bench jointer is equipped with a 10-amp motor with a speed range of 6.000 to 11.000 RPM. delivering reliable performance for both hard and soft woods.
Dual Knife Cutterhead: Features a 2-knife cutterhead with jack screw knife leveling arrangement for easy blade replacement and adjustment. The built-in cutterhead lock facilitates quick and convenient knife changes.
Variable Speed Control: Offers variable speed for a range of control. allowing you to adjust the cutting speed to match the material and desired finish.
Center-Mounted Fence: The 4-1/4 center-mounted fence provides excellent support and accuracy. with a tilt range of up to 45 degrees for beveled cuts.
Spacious Aluminum Table: The table measures 30 x 6.3 and is constructed from durable aluminum for smooth material feeding and long-lasting performance.
Dust Collection Ready: Equipped with dust collection capabilities to keep your workspace clean and reduce airborne debris.
Positive Stops: Includes positive stops for quick and repeatable fence positioning. ensuring consistent results.
Specifications
| Feature | Details |
|---|---|
| Amperage | 10 Amps |
| Voltage | 120V |
| Speed Range | 6.000 – 11.000 RPM |
| Maximum RPM | 11.000 |
| Number of Blades | 2 |
| Blade Material | Steel |
| Blade Length | 6 Inches |
| Fence Type | Center-Mounted. Tiltable (Up to 45°) |
| Fence Height | 36 Inches |
| Fence Length | 19.75 Inches |
| Table Length | 30 Inches |
| Table Width | 6.3 Inches |
| Table Material | Aluminum |
| Maximum Cutting Depth | 0.125 Inches |
| Maximum Board Width | 6 Inches |
| Rabbeting Depth | 0.0625 Inches |
| Dust Collection | Yes |
| Variable Speed | Yes |
| Positive Stops | Yes |
| Tool Weight | 35 lbs |
| Assembled Height | 17.75 Inches |
| Assembled Width | 6.5 Inches |
| Color/Finish | Gray |
Package Includes
1 x 10-Amp Bench Jointer
1 x Instruction Manual
Notes
Due to photography and lighting conditions. actual colors may vary slightly from product images. Please refer to the physical item for the most accurate representation.
Product dimensions and specifications are measured manually; a slight tolerance may apply.
Please read the instruction manual carefully before first use and follow all safety guidelines.
Always wear appropriate safety gear. including eye and hearing protection. when operating the jointer.
