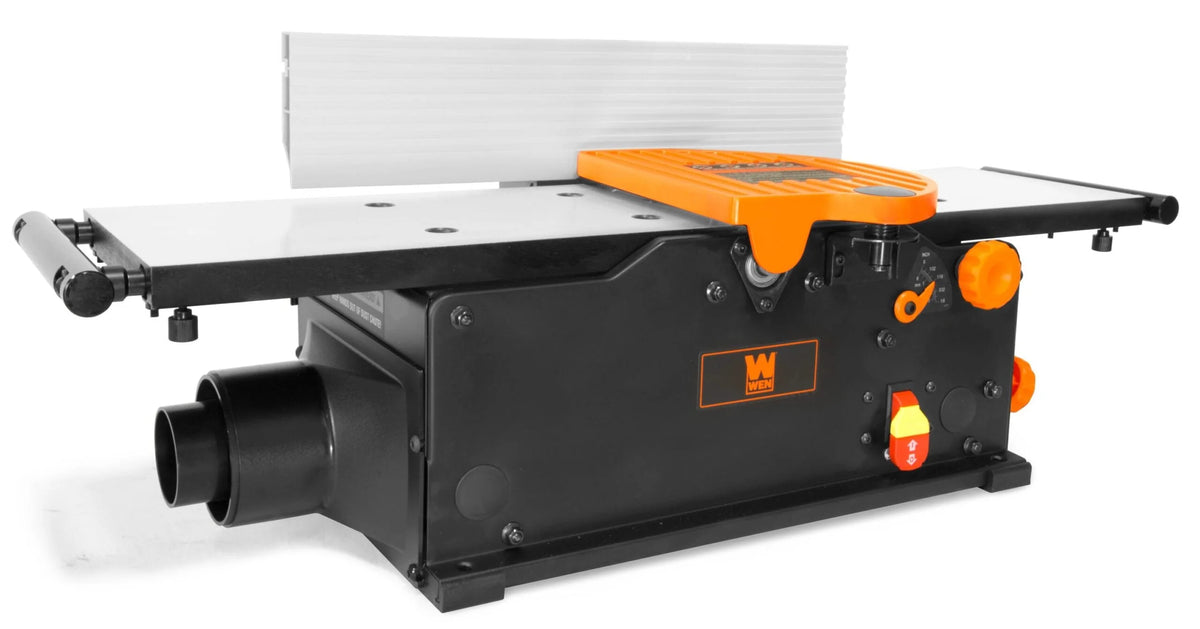

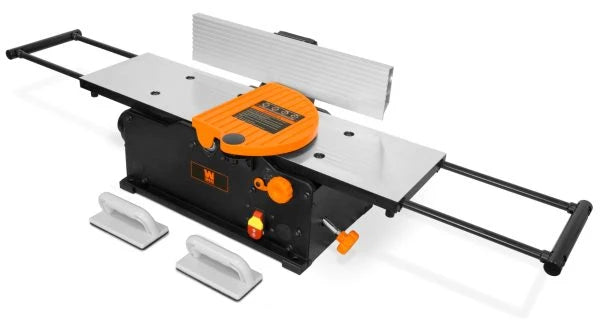

10 Amp 8-Inch Spiral Benchtop Jointer with Extendable Table
10 Amp 8-Inch Spiral Benchtop Jointer with Extendable Table
Couldn't load pickup availability
About This Item
Precision Spiral Cutterhead System: This 8-inch benchtop jointer features a spiral cutterhead with 16 staggered HSS blades. delivering an ultra-fine finish on both hard and soft woods for professional-quality results.
Powerful 10-Amp Motor: Equipped with a 10-amp motor that rotates the cutterhead at up to 12.000 RPM. providing efficient material removal and smooth operation.
Adjustable Depth of Cut: The infeed table adjusts to remove 0 to 1/8 inch of material with each pass. featuring a reliable depth-of-cut scale for maximum accuracy and repeatability.
Spacious & Extendable Table: The table measures 33 x 8 with support arms that extend up to 51 inches. providing ample support for longer workpieces.
Beveling Fence: The adjustable fence (19-3/4 x 4-1/4) bevels up to 45 degrees. allowing you to create angled cuts along the faces of your boards for versatile woodworking applications.
Safety-First Design: Features a spring-loaded blade guard that protects against accidental injury. exposing only a limited section of the cutterhead during operation. Includes 2 push blocks for safer jointing.
Convenient Dust Collection: Equipped with onboard dust ports (2-1/2 and 4) for minimal cleanup and a cleaner workspace.
Blade Replacement Compatibility: Compatible with replacement spiral blades for easy maintenance and extended tool life.
2-Year Warranty & Support: Backed by a 2-year warranty. a stocked inventory of replacement parts. and a friendly customer help line for peace of mind and reliable after-sales support.
Specifications
| Feature | Details |
|---|---|
| Motor | 10 Amp |
| Cutterhead Type | Spiral with 16 Staggered HSS Blades |
| Cutterhead Speed | Up to 12.000 RPM |
| Table Size | 33 x 8 (Extends up to 51) |
| Depth of Cut | 0 to 1/8 (Adjustable) |
| Fence Size | 19-3/4 x 4-1/4 |
| Fence Bevel | Up to 45 Degrees |
| Dust Ports | 2-1/2 and 4 |
| Included Accessories | 2 Push Blocks. Depth-of-Cut Scale |
| Warranty | 2-Year |
Package Includes
1 x 8 Benchtop Jointer
1 x Spiral Cutterhead with HSS Blades (Pre-Installed)
2 x Push Blocks
1 x Instruction Manual
Notes
Due to photography and lighting conditions. actual colors may vary slightly from product images. Please refer to the physical item for the most accurate representation.
Product dimensions and specifications are measured manually; a slight tolerance may apply.
Please read the instruction manual carefully before first use and follow all safety guidelines.
Always wear appropriate safety gear. including eye and hearing protection. when operating the jointer.
